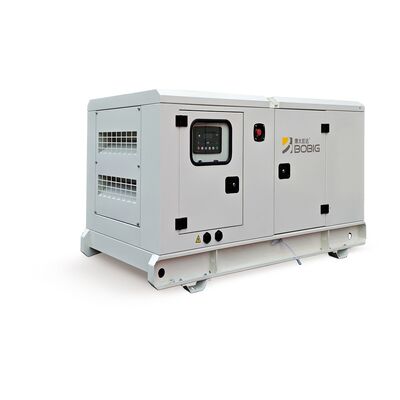

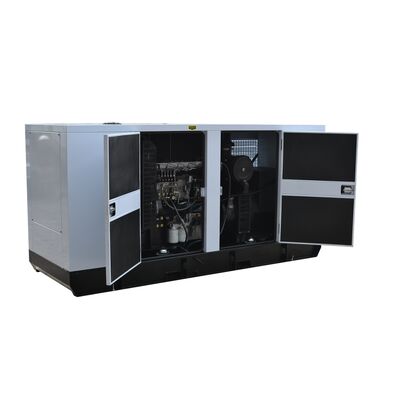

POWER Intelligent SDEC Diesel Generator 160kW 200KVA Open Type Silent Diesel Electric Power Generator
Product Overview
Our 160kW 200KVA BOBIG SDEC diesel generator (Model: SC8D280D2) is designed to provide reliable power for a wide range of applications. Backed by the SDEC brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 160kW (200KVA) - meets power needs for various industrial, commercial, and residential applications with stable and efficient prime power output.
Frequency: 50Hz standard frequency suitable for most electrical equipment.
Engine Excellence
Engine Model: SC8D280D2 SDEC engine with advanced technology, high torque, fuel efficiency, and low emissions.
Engine Speed: 1500 RPM for smooth, consistent power supply with minimal wear.
Technical Specifications
| General Information |
Prime Power |
Standby Power |
| Rated Power (kVA) |
200 |
220 |
| Power Rating (kW) |
160 |
176 |
| Frequency (Hz) |
50 |
| Engine Model |
SC8D280D2 |
| Engine Speed (RPM) |
1500 |
| Phase |
3 |
| PF |
0.8 |
| Control System |
Digital |
| Rated Voltage (V) |
400/230 (customizable) |
| Fuel Tank Capacity Operating Time |
≥ 8h @ 75% load |
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating applicable for emergency power supply during utility interruptions. No overload, utility parallel, or negotiated outage operation capability available.
| Engine Specifications |
| Engine Model & Manufacturer |
SC8D280D2 (SDEC) |
| Engine Type |
In-line, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler |
| Combustion Type |
Direct injection |
| Cylinder Type |
Wet cylinder liner |
| Number of Cylinders |
6 |
| Bore × Stroke |
114 × 135 mm |
| Displacement |
8.27 lit. |
| Compression Ratio |
18 : 1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel Injection Advance Angle |
6°BTDC |
| Dry Weight |
740 kg |
| Dimension |
1472×762×1240mm |
| Rotation |
CCW viewed from flywheel |
| Fly Wheel Housing |
SAE2# |
| Fly Wheel |
SAE 11.5# (125 teeth) |
| Injection Pump |
Longkou in-line "P" type |
| Governor |
Electric type |
| Feed Pump |
Mechanical type |
| Injection Nozzle |
Multi hole type |
| Alternator Specifications |
| Alternator Brand |
BOBIG |
| Alternator Manufacturer |
FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model |
BW-274H |
| Alternator Rated Power |
160kW/200kVA |
| Rated Voltage (V) |
230V/400V |
| Rated Frequency |
50Hz |
| Connecting Type |
3 Phase and 4 W |
| Number of Bearing |
1 |
| Protection Grade |
IP23 |
| Altitude |
≤1000m |
| Exciter Type |
Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class |
H class |
| Telephone Influence Factor (TIF) |
≤50 |
| THF |
≤2% |
| Voltage Regulation, Steady State |
≤±1% |
| Transient State Voltage |
≤-15%~+20% |
| Dimension and Weight |
Open Type (BSD220) |
Silent Type (BSD220S) |
| Length (L) mm |
2370 |
3200 |
| Width (W) mm |
950 |
1200 |
| Height (H) mm |
1760 |
1660 |
| Tank Capacity (L) |
368 |
368 |
Superior Features
Packaging & Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
Applications
- Industrial Use: Backup power for factories to ensure continuous production during outages
- Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
- Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.
Why Choose Us
- Quality Assurance: Manufactured according to international standards with rigorous quality inspections
- Customization Options: Custom solutions based on specific requirements
- Reliable Support: Parts available anytime, typically shipped within 3-5 days
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit receipt.
Which port do you use for export?
Fuzhou port, Fujian province or as customer requested.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Can you offer parts when needed?
Yes, parts available anytime (not limited to warranty period), typically shipped within 3-5 days.
Can you customize voltage, frequency, tank capacity, phase and color?
Yes, all specifications can be customized according to customer needs.
What is your distribution policy?
We welcome distributors worldwide. We provide authority certificates and sign distribution agreements accordingly.
