Αρχική Σελίδα /Προϊόντα/Γεννήτρια diesel SDEC/Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling

Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling

1 Σετ
MOQ
5422-9099USD
τιμή
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Ταχύτητα: 1500 σ.α.λ
Συχνότητα: 50/60Hz
Ονομαστική ισχύς: 5KW έως 2000KW
Τύπος εξόδου: AC Τριφασικό
Τύπος: Ανοιχτό ή Αθόρυβο (Σούπερ Αθόρυβο)
Χρώμα: Κατά την απαίτησή σας, Προσαρμοσμένο
Επισημαίνω:

SDEC diesel generator 1000KW water cooling

,

silent type SDEC diesel generator 1250KVA

,

customized open type SDEC diesel generator
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: SDEC
Αριθμό μοντέλου: 6WTAA35-G311
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Κόντρα πλακέ
Χρόνος παράδοσης: 20 ημέρες εργασίας
Όροι πληρωμής: L/C, T/T
Δυνατότητα προσφοράς: 50 σετ ανά μήνα
Περιγραφή προϊόντων
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling
Product Overview

High quality water cooling SDEC diesel generator available in both open and silent configurations to meet diverse operational requirements.

Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 1250 1375
Power Rating (kW) 1000 1100
Frequency (Hz) 50
Engine Model 6WTAA35-G311
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230 (According to customer requirements)
Fuel tank capacity operating time ≥ 8h @ 75% load
Power Definitions
PRP (Prime Power): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Emergency Standby Power): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BSD1375 (Open type) BSD1375S (Silent type)
Length (L) mm 4360 5600
Width (W) mm 1600 2200
Height (H) mm 3375 2550
Tank capacity (L) 2300 2300
Note: Specifications and illustrations are subject to revision without notice.
Engine Specifications
Engine model & manufacturer 6WTAA35-G311(SDEC)
Engine Model 6WTAA35-G311
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion type Direct injection
Cylinder Type wet cylinder liner
Number of cylinders 6
Bore × stroke 186 × 215mm
Displacement 35.1 lit.
Compression ratio 15 : 1
Firing order 1-5-3-6-2-4
fuel injection advance angle electronic control
Dry weight 4000 kg
Dimension 2429×1422×2019mm
Rotation CCW viewed from flywheel
Fly wheel housing SAE 0#
Fly wheel SAE 18#(number of teeth: 164)
Injection pump Hengyang W28C Pump
Governor Electric type
Feed pump Mechanical type
Injection nozzle Multi hole type
Heavy duty diesel engine Starter battery (with lead acid) including rack and cables
Anti-vibration mount Flexible fuel connection hoses
Replaceable fuel filter, oil filter & air filter Exhaust silencer and bellows
Cooling radiator and fan Operation manuals and circuit diagram documents
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-404G
Alternator Rated Power 1000kw/1250kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Product Images
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 0

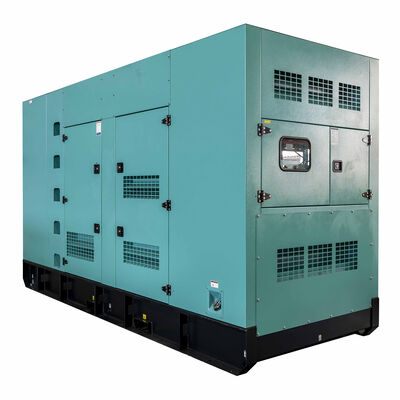

Front View
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 1
Side View
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 2

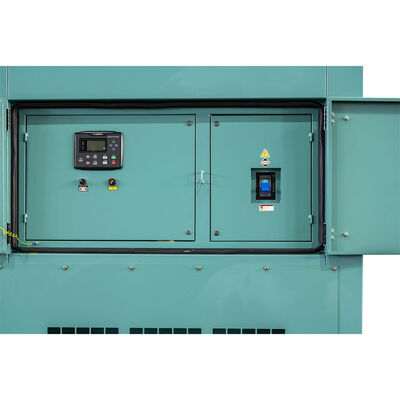

Control Panel
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 3
Engine Detail
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 4
Alternator View
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 5

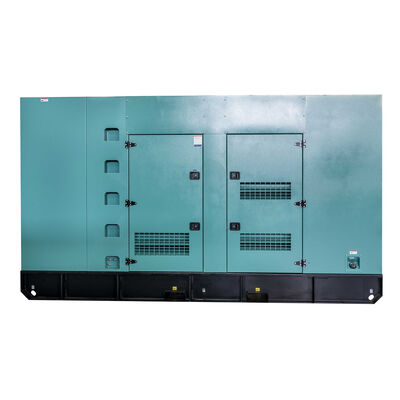

Silent Type Exterior
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 6

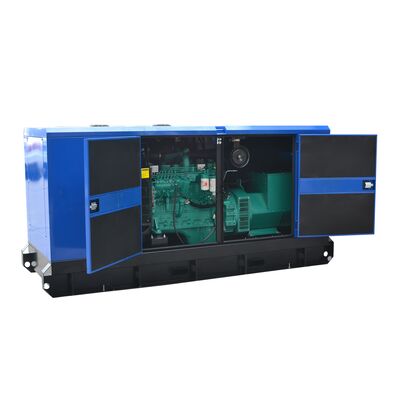

Internal Components
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 7
Cooling System
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 8
Fuel System
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 9
Electrical Connections
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 10
Full Assembly
Customized Factory Price Open/Silent Type SDEC Diesel Generator 1000KW/1250KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
