350kw 200kw 120kw 75kw 25kw FAWDE Super Silent diesel Generators for Diesel Generator Silent Genset with 3 Phase Generator

1
MOQ
2500USD-5000USD
τιμή
350kw 200kw 120kw 75kw 25kw FAWDE Super Silent diesel Generators for Diesel Generator Silent Genset with 3 Phase Generator
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Επισημαίνω:

FAWDE silent diesel generator 350kw

,

3 phase diesel genset with warranty

,

super silent diesel generator 200kw
Βασικές πληροφορίες
Μάρκα: FAWDE
Πιστοποίηση: ISO 9001
Αριθμό μοντέλου: 6CTA8.3-G1
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: 315*112*153 εκ
Χρόνος παράδοσης: 30 ΕΡΓΑΣΙΜΕΣ ΗΜΕΡΕΣ
Δυνατότητα προσφοράς: 500 τμχ το μήνα
Περιγραφή προϊόντων
FAWDE Super Silent Diesel Generators
High-performance heavy-duty diesel generator sets designed for reliable prime and standby power applications. Available in multiple power ratings including 25kW, 75kW, 120kW, 200kW, and 350kW models.
Model CA6DF2-19D-YFD11W - 120kW Specification
Engineered with the renowned FAWDE engine and encased in a robust soundproof canopy, making it ideal for applications requiring low noise operation without compromising on power and durability.

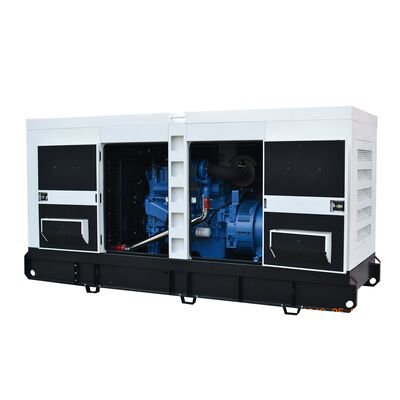

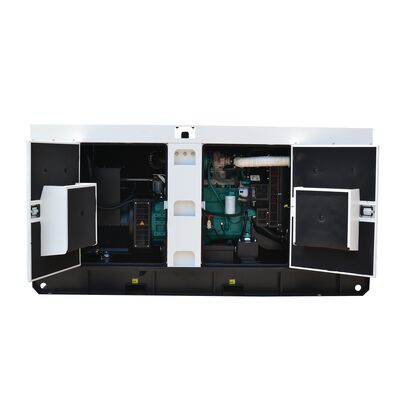

350kw 200kw 120kw 75kw 25kw FAWDE Super Silent diesel Generators for Diesel Generator Silent Genset with 3 Phase Generator 0 350kw 200kw 120kw 75kw 25kw FAWDE Super Silent diesel Generators for Diesel Generator Silent Genset with 3 Phase Generator 1
Power Specifications
Parameter Prime Power Standby Power
Rated Power (kVA) 150 165
Power Rating (kW) 120 132
Frequency (Hz) 50
Engine Model CA6DF2-19D-YFD11W
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Operating Time ≥ 8 hours @ 75% load
Power Rating Definitions
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation.
ESP (Emergency Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
Model BFA165 (Open Type) BFA165S (Silent Type)
Length (mm) 2500 3250
Width (mm) 950 1120
Height (mm) 1760 1540
Tank Capacity (L) 276 276
Engine Specifications
Engine Model & Manufacturer CA6DF2-19D-YFD11W (FAWDE)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 Stroke
Aspiration Turbocharged & Intercooled
Cooling System Water-cooled
Bore 110 mm
Stroke 125 mm
Compression Ratio 17.5:1
Displacement 7.13 L
Dry Engine Weight 700 kg
Dimensions (L×W×H) 1305 × 934 × 920 mm
Flywheel Shell Interface SAE2-11.5"
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274E
Rated Power 120kW / 150kVA
Rated Voltage 230V / 400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude Rating ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H Class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation (Steady State) ≤±1%
Transient State Voltage ≤-15% ~ +20%
Control System - DSE 6120
Advanced auto start and auto mains failure control module with alternator frequency and CAN speed sensing capabilities.
Key Benefits
  • Automatic transfer between mains (utility) and generator power
  • Accurate hours counter for monitoring and maintenance scheduling
  • User-friendly setup and intuitive button layout
  • Simultaneous monitoring of multiple parameters for complete visibility
  • Highly configurable to suit wide range of applications
  • PLC editor for user-configurable functions
350kw 200kw 120kw 75kw 25kw FAWDE Super Silent diesel Generators for Diesel Generator Silent Genset with 3 Phase Generator 2
Key Features
  • 4-line back-lit LCD text display with multiple language support
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility and internal PLC editor
  • 3-phase generator and mains sensing with protection
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm and over current protection
  • 6 configurable DC outputs and 8 configurable digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • Real time clock and engine run-time scheduler
  • Compatible with wide range of CAN engines including Tier 4
  • IP65 rating with optional gasket for water resistance
Available Options
Engine Options Alternator Options Fuel System Options Generator Set Options
Water Jacket Preheater PMG Excitation 12/24 Hour Base Tank Deepsea, ComAp, Smartgen Controllers
Oil Preheater Space Heater Bunded Fuel Tank Trailer Mounting
Oil Manual Pump Winding Temperature Measurement External Fuel Tank Tools with Machine
Automatic Fuel Feeding
External/Base Tank Switch Valve
Product Images
350kw 200kw 120kw 75kw 25kw FAWDE Super Silent diesel Generators for Diesel Generator Silent Genset with 3 Phase Generator 3 350kw 200kw 120kw 75kw 25kw FAWDE Super Silent diesel Generators for Diesel Generator Silent Genset with 3 Phase Generator 4 350kw 200kw 120kw 75kw 25kw FAWDE Super Silent diesel Generators for Diesel Generator Silent Genset with 3 Phase Generator 5 350kw 200kw 120kw 75kw 25kw FAWDE Super Silent diesel Generators for Diesel Generator Silent Genset with 3 Phase Generator 6
