Name: Super Silent Cummin S 120kW 150KVA Portable diesel Generator Set Water Cooled Soundproof for Home ATS 3 Phase Good Quality
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: 6BTAA5.9-G12
Price: 15,800.00 USD
Availability: InStock

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Θόλος: Προσαρμοσμένο

Εγγύηση: 12 Μήνες/1000 Ώρες

τύπος: Αθόρυβο (σούπερ αθόρυβο) ή ανοιχτό, αθόρυβο, κ.λπ., Εν σειρά/6-κύλινδρος/4-κύλινδρος/4-βαλβίδα/19L,

Πίνακας Ελέγχου: Ψηφιακή οθόνη LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen

Τύπος εξόδου: AC Μονο/Τριφασικο

Ελεγκτής: Deepsea/Smartgen/κ.λπ

Εφαρμογή: Indursty Bank κ.λπ

Ονομαστική τάση: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V

Εναλλάκτης: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga

Όνομα προϊόντος: Γεννήτρια Diesel, Γεννήτρια 100kW, Τροφοδοτείται από CUMMIN S Diesel Generator, Standby Use Power Di

Χρώμα: Απαίτηση πελατών

Συχνότητα: 50/60 HZ

Ονομαστική ισχύς: 120 kw

Μηχανή: Πρωτότυπο CUMMIN S

μέθοδος ψύξης: Σύστημα ψύξης νερού

Επισημαίνω:

Cummins diesel generator 150KVA silent

portable diesel generator set water cooled

soundproof home generator ATS 3 phase

Βασικές πληροφορίες

Τόπος καταγωγής: Κίνα

Μάρκα: CUMMIN S

Πιστοποίηση: CE

Αριθμό μοντέλου: 6BTAA5.9-G12

Πληρωμής & Αποστολής Όροι

Συσκευασία λεπτομέρειες: Περιτύλιγμα φούσκα

Χρόνος παράδοσης: 30 ημέρες

Δυνατότητα προσφοράς: 500 τμχ το μήνα

Εκθεσιακός χώρος

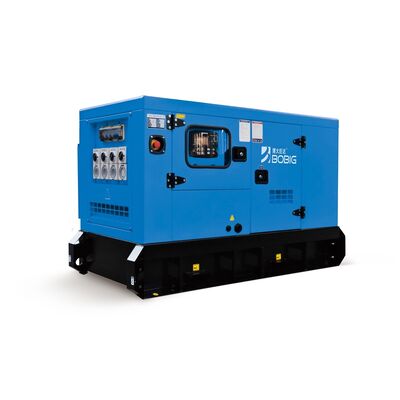

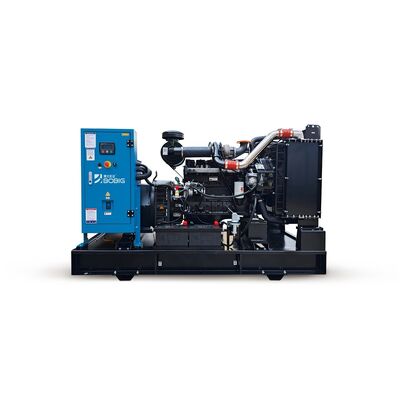

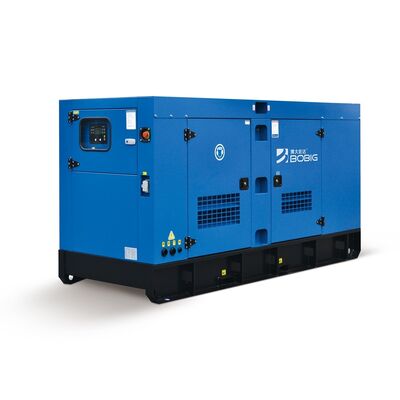

Super Silent Cummin S 120kW 150KVA Portable diesel Generator Set Water Cooled Soundproof for Home ATS 3 Phase Good Quality

Περιγραφή προϊόντων

120kW 150KVA BOBIG CUMMIN S Diesel Generator Set

Model: 6BTAA5.9-G12 - Reliable Power Solution

Product Introduction

Our 120kW 150KVA BOBIG CUMMIN S diesel generator (Model: 6BTAA5.9-G12) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.

Key Features

Power Performance:

Rated Power: 120kW (150KVA) to meet various industrial, commercial, and residential power needs. Prime power output is stable and efficient, ensuring continuous operation under heavy loads.

Frequency: Standard 50Hz operation suitable for most electrical equipment.

Engine Excellence:

Engine Model: 6BTAA5.9-G12 CUMMIN S engine combining advanced technology with high-quality manufacturing. Known for high torque, fuel efficiency, and low emissions.

Engine Speed: 1500 RPM for smooth, consistent power supply with minimized wear.

Applicable Standards

Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications for guaranteed quality, safety, and reliability.

Environmental Adaptability

Ambient Temperature: Effective operation from +5°C to +40°C.

Altitude: Suitable for use up to 1000m. Custom solutions available for different environmental conditions.

Technical Specifications

General Information

Specification	Prime Power	Standby Power
Rated Power (kVA)	150	165
Power Rating (kW)	120	132
Frequency (Hz)	50
Engine Model	6BTAA5.9-G12
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (Customizable)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97. 10% overload capability available for 1 hour within 12-hour operation.

ESP: Standby power rating for emergency power supply during utility interruptions. No overload, utility parallel, or negotiated outage operation capability.

Dimensions and Weight

Model	BC165 (Open Type)	BC165S (Silent Type)
Length (mm)	2500	3150
Width (mm)	900	1120
Height (mm)	1600	1530
Tank Capacity (L)	276	276

Engine Specifications

Engine Model & Manufacturer	6BTAA5.9-G12 (Cummin S)
Number of Cylinders	6
Cylinder Arrangement	In-line
Cycle	Four Stroke
Aspiration	Turbocharged Air-to-Air Cooling
Bore x Stroke	102 x 120 mm
Displacement	5.9 L
Compression Ratio	17.3:1
Prime Power/Speed	140 kW/1500 rpm
Standby Power/Speed	156 kW/1500 rpm
Fuel System	Beiyou P7100 Pump / SEGMA Electronic Governor
Cooling System	Force Water Cooling Cycle
Frequency Droop	≤ 5%
Total Lubrication System Capacity	16.4 L
Coolant Capacity (Engine Only)	10 L
Fuel Consumption @ 100% Load	203 g/kWh @1500 rpm
Starter Motor	DC 24V
Charge Alternator	DC 24V

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274E
Alternator Rated Power	120kW/150kVA
Rated Voltage	230V/400V
Rated Frequency	50Hz
Connecting Type	3 Phase and 4 W
Number of Bearings	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%

Customization & Features

We support customization and OEM services with design drawings.

All units are equipped with original power supplies and come with standard DSE 6120 controller. Engine, generator, and controller options are available.

Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.

Applications

Industrial Use: Backup power for factories to ensure continuous production during outages
Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
Residential Areas: Reliable power for communities with unstable power grids

Warranty and Service

BOBIG products carry a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.

Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.

Why Choose BOBIG

Brand Reputation: CUMMIN S is a trusted brand with long history of quality products
Quality Assurance: Manufactured to international standards with rigorous quality inspections
Customization Options: Tailored solutions based on specific customer requirements
