Name: Cummin s Genset 80kW 100KVA Durable Rust-proof Power Super Silent Portable Diesel Generator Home Use Small Customizable
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: 6BT5.9-G1
Price: 15,800.00 USD
Availability: InStock

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Θόλος: Προσαρμοσμένο

Εγγύηση: 12 Μήνες/1000 Ώρες

τύπος: Αθόρυβο (σούπερ αθόρυβο) ή ανοιχτό, αθόρυβο, κ.λπ., Εν σειρά/6-κύλινδρος/4-κύλινδρος/4-βαλβίδα/19L,

Πίνακας Ελέγχου: Ψηφιακή οθόνη LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen

Τύπος εξόδου: AC Μονο/Τριφασικο

Ελεγκτής: Deepsea/Smartgen/κ.λπ

Εφαρμογή: Indursty Bank κ.λπ

Ονομαστική τάση: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V

Εναλλάκτης: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga

Όνομα προϊόντος: Γεννήτρια Diesel, Γεννήτρια 80kW, Τροφοδοτείται από CUMMIN S Diesel Generator, Standby Use Power Die

Χρώμα: Απαίτηση πελατών

Συχνότητα: 50/60 HZ

Ονομαστική ισχύς: 80 KW

Μηχανή: Πρωτότυπο CUMMIN S

μέθοδος ψύξης: Σύστημα ψύξης νερού

Επισημαίνω:

80kW Cummins diesel generator

100KVA silent portable generator

rust-proof home diesel genset

Βασικές πληροφορίες

Τόπος καταγωγής: Κίνα

Μάρκα: CUMMIN S

Πιστοποίηση: CE

Αριθμό μοντέλου: 6BT5.9-G1

Πληρωμής & Αποστολής Όροι

Συσκευασία λεπτομέρειες: Περιτύλιγμα φούσκα

Χρόνος παράδοσης: 30 ημέρες

Δυνατότητα προσφοράς: 500 τμχ το μήνα

Εκθεσιακός χώρος

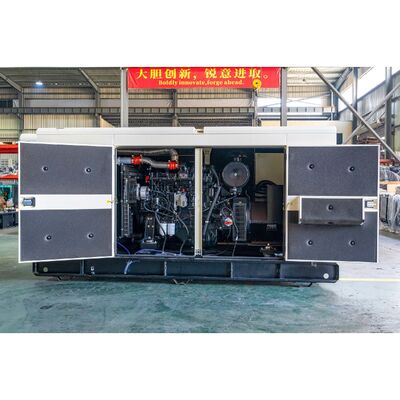

Cummin s Genset 80kW 100KVA Durable Rust-proof Power Super Silent Portable Diesel Generator Home Use Small Customizable

Περιγραφή προϊόντων

80kW 100KVA BOBIG CUMMIN S Diesel Generator

Model: 6BT5.9-G1 - Reliable Power Solution

Our 80kW 100KVA BOBIG CUMMIN S diesel generator (Model: 6BT5.9-G1) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.

Key Features

Power Performance

Rated Power: 80kW (100KVA) for industrial, commercial, and residential applications
Stable prime power output ensures continuous operation under heavy loads
Standard frequency: 50Hz suitable for most electrical equipment

Engine Excellence

Engine Model: 6BT5.9-G1 CUMMIN S engine
Advanced technology with high torque, fuel efficiency, and low emissions
Engine Speed: 1500 RPM for smooth, consistent power supply

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	100	110
Power Rating (kW)	80	88
Frequency (Hz)	50
Engine Model	6BT5.9-G1
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (Customizable)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

Dimension and Weight

Model	BC110 (Open Type)	BC110S (Silent Type)
Length (mm)	2120	2850
Width (mm)	850	1040
Height (mm)	1400	1430
Tank Capacity (L)	184	184

Engine Specifications

Engine Model & Manufacturer	6BT5.9-G1 (Cummins)
Number of Cylinders	6
Cylinder Arrangement	In-line
Cycle	Four Stroke
Aspiration	Turbocharged
Bore x Stroke	102 x 120 mm
Displacement	5.9 L
Compression Ratio	17.3:1
Prime Power/Speed	86 kW/1500 rpm
Standby Power/Speed	96 kW/1500 rpm
Cooling System	Force Water Cooling Cycle
Total Lubrication System Capacity	16.4 L
Coolant Capacity (Engine Only)	7.9 L
Fuel Consumption (100% Load)	208 g/kWh @1500 rpm

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274C
Alternator Rated Power	80kw/100kva
Rated Voltage	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class

Customization & OEM Services

We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller (engine, generator, and controller are optional).

Applications

Industrial Use: Backup power source for factories ensuring continuous production during power outages
Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
Residential Areas: Reliable power for communities in areas with unstable power grids

Environmental Adaptability

Ambient Temperature: +5°C to +40°C
Altitude: Up to 1000m (custom solutions available for different conditions)

Certifications & Standards

Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications guaranteeing quality, safety, and reliability.

Warranty & Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.

Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
