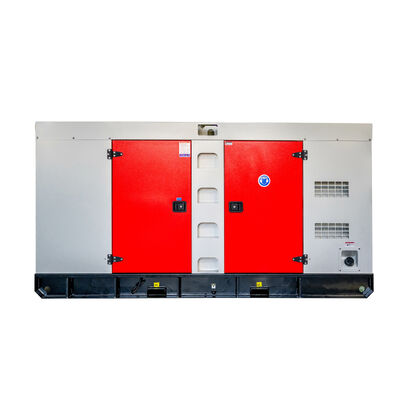

YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power

1
MOQ
USD 4000-6000
τιμή
YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Επισημαίνω:

64kW silent diesel generator

,

80kVA mobile diesel generator

,

three phase emergency power generator
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: YANGDONG
Αριθμό μοντέλου: Γιανγκντόνγκ Y4110ZLD
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: 260*93*122 εκ
Χρόνος παράδοσης: 30 ΕΡΓΑΣΙΜΕΣ ΗΜΕΡΕΣ
Όροι πληρωμής: L/C, T/T, D/P
Δυνατότητα προσφοράς: 500 τμχ το μήνα
Περιγραφή προϊόντων

YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power



Product Description


Our YANGDONG Y4110ZLD Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 64kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.



YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power 0YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power 1

General information Prime power Standby power
Rated Power (kVA) 80 88
Power Rating (kW) 64 70
Frequency (Hz) 50
Engine Model Y4110ZLD
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230
(According to customer requirements)
Fuel tank capacity operating time ≥ 8h @ 75% load
PRP Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation
ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this ratin
Dimension and Weight
Model BY88
Open type		 BY88S
Silent type
Length (L) mm 1850 2600
Width (W) mm 730 930
Height (H) mm 1350 1220
Tank capacity (L) 147 147
Engine Specification
Engine model & manufacturer Y4110ZLD(YANGDONG)
Engine Model Y4110ZLD
No. of cylinders 4
Injection Type Direct
Aspiration Turbocharged
Configuration Vertical
Bore 110 mm
Stroke 118 mm
Compression ratio 18
Displacement 4.3 L
Dry engine weight 370 kg
Dimension(L*W*H) 892*618*740
The Flywheel shell interface SAE3
Governed Engine Speed 1500
Continuous Power without Fans 80
Standby Power 89
Number of Flywheel Teeth 119



Alternator Specifica
Alternator
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224G
Alternator Rated Power 64kw/80kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%





Control Panel



DSE 6120

Auto start and auto mains failure control module(Alternator frequency & can speed sensing)

  Key benefits
•Automatically transfers betweenmains (utility) and generator
(DSE6120 MKIII only) forconvenience.
•Hours counter provides accurateinformation for monitoring andmaintenance periods
•User-friendly set-up and buttonlayout for ease of use
•Multiple parameters are monitored& displayed simultaneously for fullvisibility
•The module can be configured tosuit a wide range of applications foruser flexibility
•PLC editor allows user configurablefunctions to meet user specificapplication requirements.

  YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power 2









Key features
•4-line back-lit LCD text display
•Multiple display languages
•Five-key menu navigation
•LCD alarm indication
•Customisable power-up text andscreen images.
•DSENet® expansion compatibility
•Data logging facility
•Internal PLC editor
•Protections disable feature
•Fully configurable via PC using
USB communications
•Front panel configuration withPIN protection
•Power save mode
•3-phase generator sensing andprotection
•3-phase mains (utility) sensing andprotection (DSE6120 MKIII only)
•Automatic load transfer control(DSE6120 MKIII only)
•Generator current and powermonitoring (kW, kvar, kVA, pf)
•Mains (utility) current and power
monitoring (kW
, kvar, kVA, pf)(DSE6120 MKIII only)
•kW overload alarm
•Over current protection
•Breaker control via fascia buttons



  •Fuel and start outputs configurablewhen using CAN
•6 configurable DC outputs
•4 configurable analogue/digitalinputs
•Support for 0 V to 10 V & 4 mA to20 mA sensors
•8 configurable digital inputs
•CAN, MPU and alternatorfrequency speed sensing in onevariant
•Real time clock
•Manual and automatic fuel pumpcontrol
•Engine pre-heat and post-heatfunctions
•Engine run-time scheduler
•Engine idle control for starting &stopping
•Fuel level alarms
•3 configurable maintenance alarms
•Compatible with a wide range ofCAN engines, including Tier 4engine support
•Uses DSE Configuration Suite PC
Softwar
e for simplifiedconfiguration
•Licence-free PC software
•IP65 rating (with optional gasket)offers increased resistance to wateringress
•Configurable CAN read &transmitted information.
•1 alternative configuration





















Options



Engine Alternator Fuel System Generating Set
Water Jacket Preheater
Oil Preheater
Oil manual pump		 PMG excitation
Space heater
inding temperature
measuring		 12 / 24 hour base tank
Bunded fuel tank
External fuel tank
Automatic fuel feeding
Switch between external tank
and base tank (three-way valve)		 Deepsea, ComAp, Smartgen
etc. controller
Trailer
Tools with the machine
YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power 3YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power 4
YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power 5

YANGDONG 64kW 80kVA Mobile Three Phase Silent Frame Diesel Generator for Emergency Power 6
