Water-Cooling Portable Diesel Generator PERKINS 64kW Silent Power Generador 80KVA
Product Overview
Our 64kW 80KVA BOBIG PERKINS diesel generator (Model: 1104A-44TG2) is designed to provide reliable power for a wide range of applications. Backed by the renowned PERKINS brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 64kW (80KVA) with stable and efficient prime power output ensuring continuous operation even under heavy loads.
Frequency: Standard 50Hz operation suitable for most electrical equipment.
Engine Excellence
Engine Model: 1104A-44TG2 PERKINS engine with high torque, fuel efficiency, and low emissions.
Engine Speed: 1500 RPM for smooth and consistent power supply with minimal wear.
Technical Specifications
| General Information |
Prime Power |
Standby Power |
| Rated Power (kVA) |
80 |
88 |
| Power Rating (kW) |
64 |
70 |
| Frequency (Hz) |
50 |
| Engine Model |
1104A-44TG2 |
| Engine Speed (RPM) |
1500 |
| Phase |
3 |
| PF |
0.8 |
| Control System |
Digital |
| Rated Voltage (V) |
400/230 (customizable) |
| Fuel Tank Capacity Operating Time |
≥ 8h @ 75% load |
Power Ratings Explanation
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12-hour operation.
ESP (Standby Power): Applicable for emergency power supply during utility interruptions. No overload capability available at this rating.
Dimensions and Weight
| Model |
BP88 (Open Type) |
BP88S (Silent Type) |
| Length (mm) |
1850 |
2500 |
| Width (mm) |
700 |
930 |
| Height (mm) |
1200 |
1250 |
| Tank Capacity (L) |
147 |
147 |
Engine Specifications
| Engine Model & Manufacturer |
1104A-44TG2 (PERKINS) |
| Number of Cylinders |
3 |
| Cylinder Arrangement |
Vertical Inline |
| Cycle |
Four Stroke |
| Aspiration |
Turbocharged |
| Bore x Stroke |
105 x 127 mm |
| Cubic Capacity |
4.4 L |
| Compression Ratio |
17.25:1 |
| Prime Power/Speed |
71.9 kW/1500 rpm |
| Standby Power/Speed |
79.1 kW/1500 rpm |
| Cooling System |
Force Water Cooling Cycle |
| Total Lubrication System Capacity |
11.0 L |
| Coolant Capacity (Engine Only) |
13.0 L |
| Fuel Consumption @ 100% Load |
217 g/kWh @1500 rpm |
Alternator Specifications
| Alternator Brand |
BOBIG |
| Manufacturer |
FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model |
BW-224G |
| Rated Power |
64kW/80kVA |
| Rated Voltage |
230V/400V |
| Rated Frequency |
50Hz |
| Connecting Type |
3 Phase and 4 Wire |
| Protection Grade |
IP23 |
| Altitude |
≤1000m |
| Insulation Class |
H Class |
| Voltage Regulation, Steady State |
≤±1% |
Customization & Options
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.

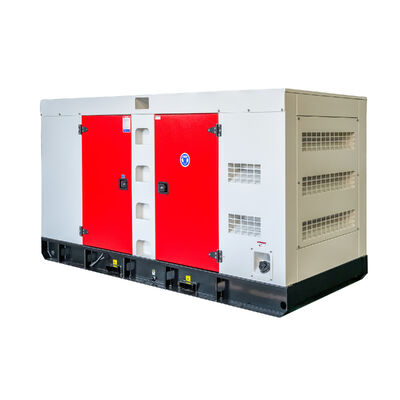

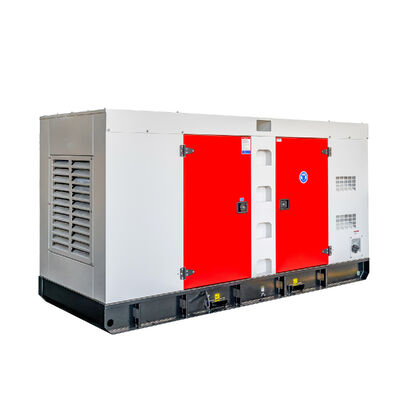

Product Image
Applications
- Industrial Use: Backup power for factories to ensure continuous production during outages
- Commercial Buildings: Power for office buildings, shopping malls, and hotels
- Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.
Company Information
We are an electrical machinery manufacturer with 10,000 square meters factory area, 160 employees, and 20 technicians. Our main products include gasoline generators, diesel generators (5-2000kva), gas generators, and pumps. We hold ISO9000 Quality System Certification and maintain advanced testing equipment including CAD systems and digital testing equipment.
Facility Images
Frequently Asked Questions
Ordering & Payment
Q: What is your MOQ, payment method, and delivery time?
A: MOQ is 1 set. Payment methods include 30% T/T deposit with 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery time is 10-15 working days after deposit receipt.
Shipping & Export
Q: Which port do you use for export?
A: Fuzhou port, Fujian province or as customer requested.
Parts & Maintenance
Q: Do you provide spare parts for maintenance?
A: Yes, we provide engine air filters, water filters, fuel filters, and oil filters for customer self-maintenance.
Customization
Q: Can voltage, frequency, tank capacity, phase, and color be customized?
A: Yes, all specifications can be customized according to your needs.
Distribution
Q: What is your distribution policy?
A: We welcome distributors worldwide and can issue authority certificates and sign distribution agreements.
