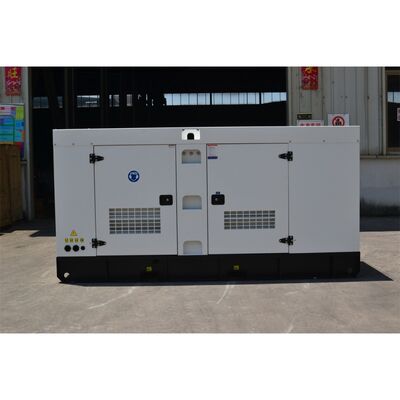

Name: 52kW Super Silent Diesel Generator with Digital Panel Water Cooled System Price Portable 65KVA Silent Electric Diesel Generators
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: YM6H4LF - Δ
Price: 15,800.00 USD
Availability: InStock

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Θόλος: Προσαρμοσμένο

Εγγύηση: 12 ώρες Months/1000

Τύπος: Σιωπηλός (έξοχος σιωπηλός) ή ανοικτός, σιωπηλός, κ.λπ., ευθύγραμμος/6-Cylinder/4-Stroke/4-Valve/19L,

Πίνακας Ελέγχου: Ψηφιακή επίδειξη LCD, βαθύβια, ComAp, βαθύβιος/ComAp/Harsen/Smartgen 6110, Smartgen

Τύπος εξόδου: Εναλλασσόμενο ρεύμα ενιαίο/τριφασικό

Ελεγκτής: Βαθύβιος/Smartgen/κ.λπ.

Εφαρμογή: Τράπεζα Indursty κ.λπ.

Ονομαστική τάση: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V

ΕΝΑΛΛΑΚΤΗΣ: Μαραθώνιος, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-Somer, Stamford ή Newtec, Engga

Όνομα προϊόντος: Προσαρμόσιμες γεννήτριες πετρελαίου PERKINS 65KVA 52kW, για οικιακή χρήση, βιομηχανική χρήση, νοσοκο

Χρώμα: Απαίτηση πελατών

Συχνότητα: 50/60Hz

Ονομαστική ισχύς: 65KVA

Μηχανή: Αρχικό Perkins

Μέθοδος ψύξης: Σύστημα ψύξης με νερό

Επισημαίνω:

52kW silent diesel generator

water cooled diesel generator

65KVA portable diesel generator

Βασικές πληροφορίες

Τόπος καταγωγής: Κίνα

Μάρκα: PERKINS

Πιστοποίηση: CE

Αριθμό μοντέλου: YM6H4LF - Δ

Πληρωμής & Αποστολής Όροι

Συσκευασία λεπτομέρειες: Κόντρα πλακέ

Χρόνος παράδοσης: 30 ημέρες

Δυνατότητα προσφοράς: 500pcs το μήνα

Εκθεσιακός χώρος

52kW Super Silent Diesel Generator with Digital Panel Water Cooled System Price Portable 65KVA Silent Electric Diesel Generators

Περιγραφή προϊόντων

52kW 65KVA BOBIG PERKINS Diesel Generator (Model: 1104A-44TG1)

Our 52kW 65KVA BOBIG PERKINS diesel generator (Model: 1104A-44TG1) is designed to provide reliable power for a wide range of applications. Backed by the renowned PERKINS brand, it offers high-quality performance and long-term durability.

Key Features

Power Performance

Rated Power: 52kW (65KVA) with stable and efficient prime power output ensuring continuous operation even under heavy loads.

Frequency: Standard 50Hz operation suitable for most electrical equipment.

Engine Excellence

Engine Model: 1104A-44TG1 PERKINS engine with high torque, fuel efficiency, and low emissions.

Engine Speed: 1500 RPM for smooth and consistent power supply.

Technical Specifications

General Information

Specification	Prime Power	Standby Power
Rated Power (kVA)	65	72
Power Rating (kW)	52	57
Frequency (Hz)	50
Engine Model	1104A-44TG1
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (Customizable)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

Dimensions and Weight

Model Type	BP72 (Open)	BP72S (Silent)
Length (mm)	1850	2500
Width (mm)	700	930
Height (mm)	1200	1250
Tank Capacity (L)	120	120

Engine Specifications

Engine Model & Manufacturer	1104A-44TG1 (PERKINS)
Number of Cylinders	3
Cylinder Arrangement	Vertical inline
Cycle	Four stroke
Aspiration	Turbocharged
Bore x Stroke	105 x 127 mm
Cubic Capacity	4.4 L
Compression Ratio	17.25:1
Prime Power/Speed	58.4 kW/1500 rpm
Standby Power/Speed	64.3 kW/1500 rpm
Governor Type	Mechanical
Cooling System	Force Water Cooling Cycle
Total Lubrication System Capacity	11.0 L
Coolant Capacity (engine only)	13.0 L
Fuel Consumption (100% load)	207 g/kWh @1500 rpm

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-224F
Alternator Rated Power	52kW/65kVA
Rated Voltage (V)	230V/400V
Rated Frequency	50Hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Voltage Regulation, Steady State	≤±1%

Environmental Adaptability

Ambient Temperature

Operates effectively in temperatures from +5°C to +40°C

Altitude

Suitable for use at altitudes up to 1000m (custom solutions available for other conditions)

Applications

Industrial Use: Backup power for factories ensuring continuous production during outages
Commercial Buildings: Power for office buildings, shopping malls, and hotels
Residential Areas: Reliable power for communities with unstable power grids

Customization & Services

We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller (engine, generator, and controller are optional).

Product Image

Company Information

We are an electrical machinery manufacturer with a total factory area of 10,000 square meters, including 1,000sqm standard construction area. With 160 employees including 20 technicians, we specialize in gasoline generators, diesel generators (5-2000kva), gas generators, and pumps.

Our company has obtained ISO9000 Quality System Certification and maintains strict quality control using advanced equipment including CAD systems, auto assembling equipment, and digital testing equipment.

Factory & Facilities

Factory Exterior

Factory Facility

Workshop

Manufacturing Area

Production & Equipment

Manufacturing Equipment

Production Machinery

Production Line

Assembly Process

Quality Control & Packaging

Testing Equipment

Quality Testing

Packaging

Final Packaging

Warranty & Service

BOBIG products come with a one-year or 1000-hour warranty (whichever comes first) from the ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we provide cost-based spare parts maintenance.

Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.

Why Choose BOBIG

Brand Reputation: Trusted brand with a history of high-quality products
Quality Assurance: Manufactured in strict accordance with international standards with rigorous inspections
Customization Options: Tailored solutions based on specific requirements

Frequently Asked Questions

What is your MOQ, payment method, delivery time?

MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after receiving deposit.

Which port do you often use when export?

Fuzhou port, Fujian province or as customer request.

Is there any spare parts you can provide along with generators?

We provide regular engine's air filter, water filter, fuel filter, oil filter for self-maintenance.

Can you offer parts to us if we need?

Yes, we can offer parts at any time, not limited to warranty period. Parts are usually shipped within 3-5 days.

Can you customize voltage, frequency, tank capacity, phase and color?

Yes, all specifications can be customized according to your needs.

What is your distribution policy?

We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
