Industrial 64kW YUNNEI YN48ETD77 Water Cooled Diesel Genset CE/ISO

1
MOQ
USD 300-860
τιμή
Industrial 64kW YUNNEI YN48ETD77 Water Cooled Diesel Genset CE/ISO
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Επισημαίνω:

64kW water cooled diesel genset

,

YN48ETD77 silent diesel generator

,

industrial CE ISO diesel genset
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: YUNNEI
Αριθμό μοντέλου: YUNNEI YN48ETD77
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: 275*100*135 εκ
Χρόνος παράδοσης: 30 ΕΡΓΑΣΙΜΕΣ ΗΜΕΡΕΣ
Όροι πληρωμής: L/C, T/T, D/P
Δυνατότητα προσφοράς: 500pcs το μήνα
Περιγραφή προϊόντων
Industrial 64kW YUNNEI YN48ETD77 Water Cooled Diesel Genset CE/ISO

YUNNEI Diesel Generator Set. Our YUNNEI YN48ETD77 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YUNNEI engine, this 64kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

Power Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 80 88
Power Rating (kW) 64 70
Frequency (Hz) 50
Engine Model YN48ETD77
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BYN88 (Open Type) BYN88S (Silent Type)
Length (L) mm 2050 2750
Width (W) mm 800 1000
Height (H) mm 1750 1350
Tank Capacity (L) 147 147
Engine Specifications
Engine Model & Manufacturer YN48ETD77 (YUNNEI)
Engine Rated Speed (rpm) 1500
Generator Set Frequency (Hz) 50
Engine Prime Power (PRP) (kW) 77
Length (L) mm 1130
Width (W) mm 730
Height (H) mm 960
Engine Dry Weight w/o Cooling System (kg) 500
Aspiration Type Turbocharged
Injection Type Direct
Configuration Vertical
No. of Cylinders 4
Displacement (liters) 4.8
Bore (mm) 108
Stroke (mm) 132
Compression Ratio 16.5
Piston Speed (m/s) 7.92/9.51
Rotation Direction (from flywheel) Anti-clockwise
Number of Flywheel Teeth 130
Flywheel House Size SAE3
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO., LTD
Alternator Model BW-224G
Alternator Rated Power 64kw/80kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & can speed sensing)

Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration

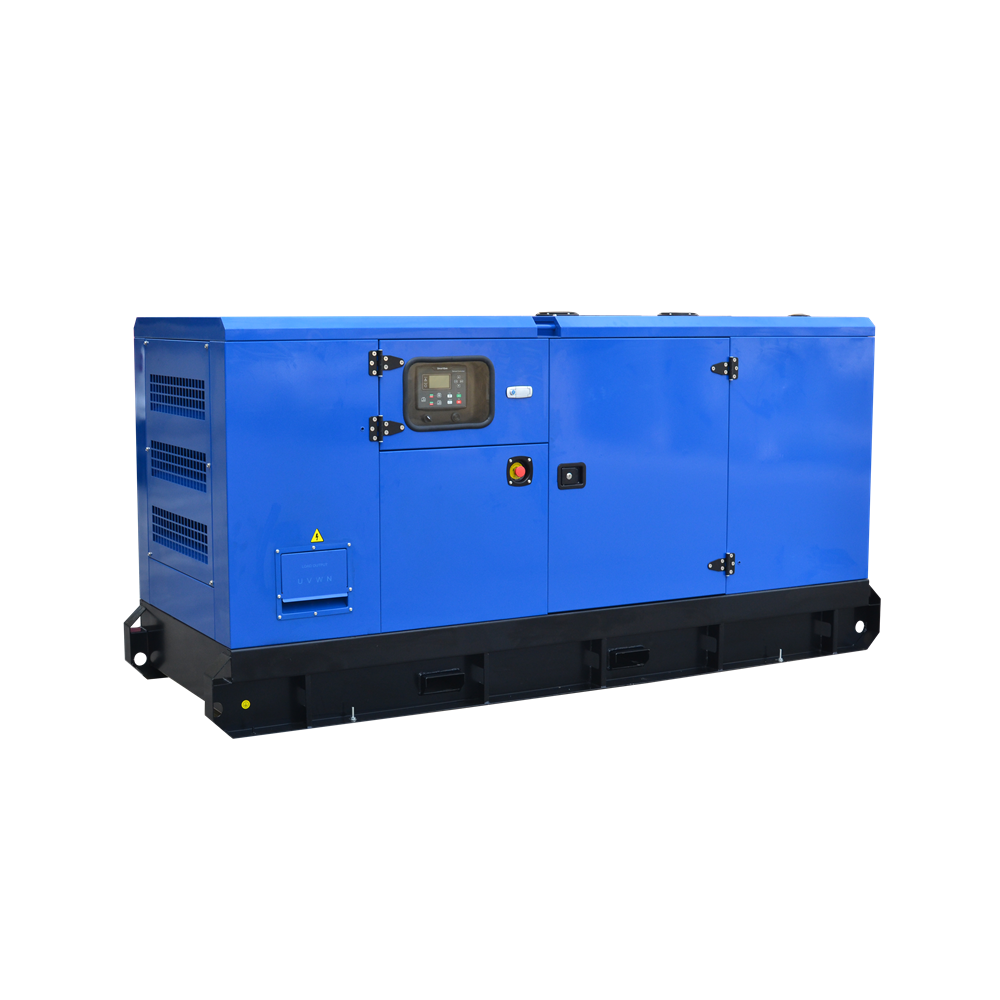

Industrial 64kW YUNNEI YN48ETD77 Water Cooled Diesel Genset CE/ISO 0
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12 / 24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

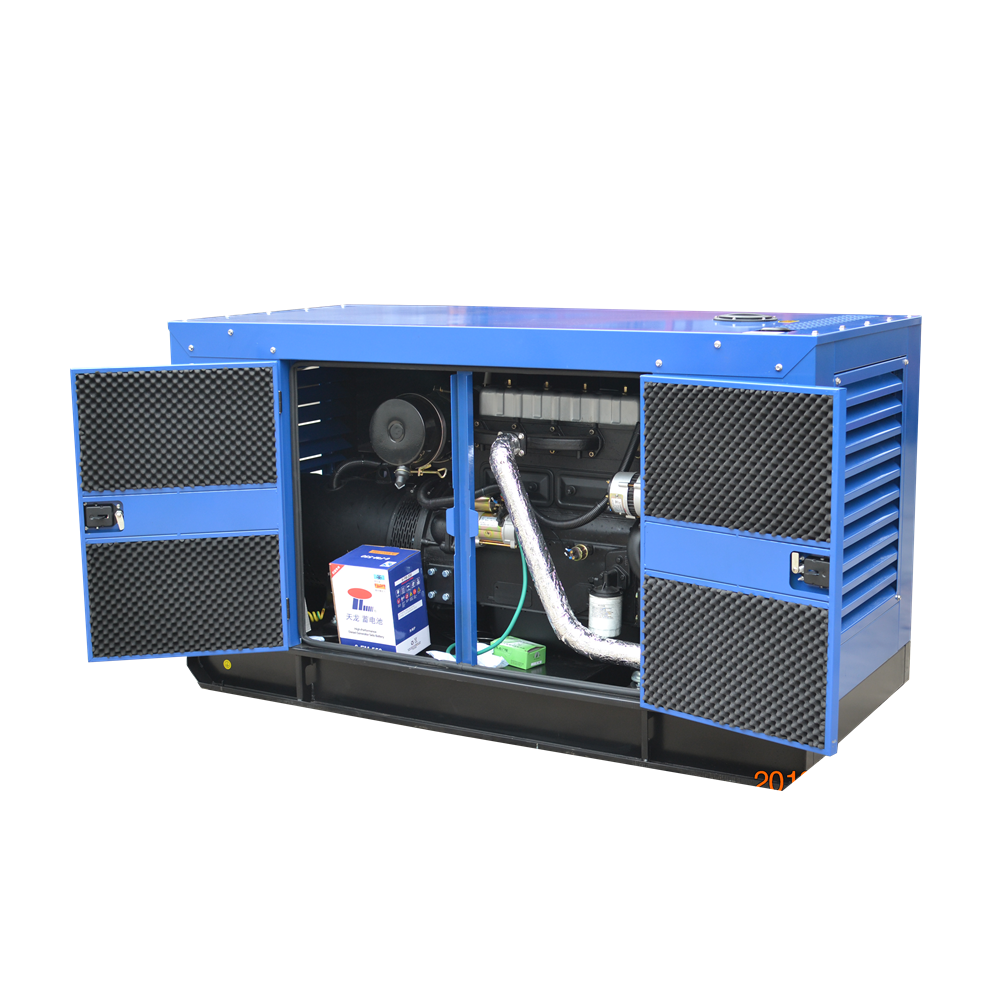

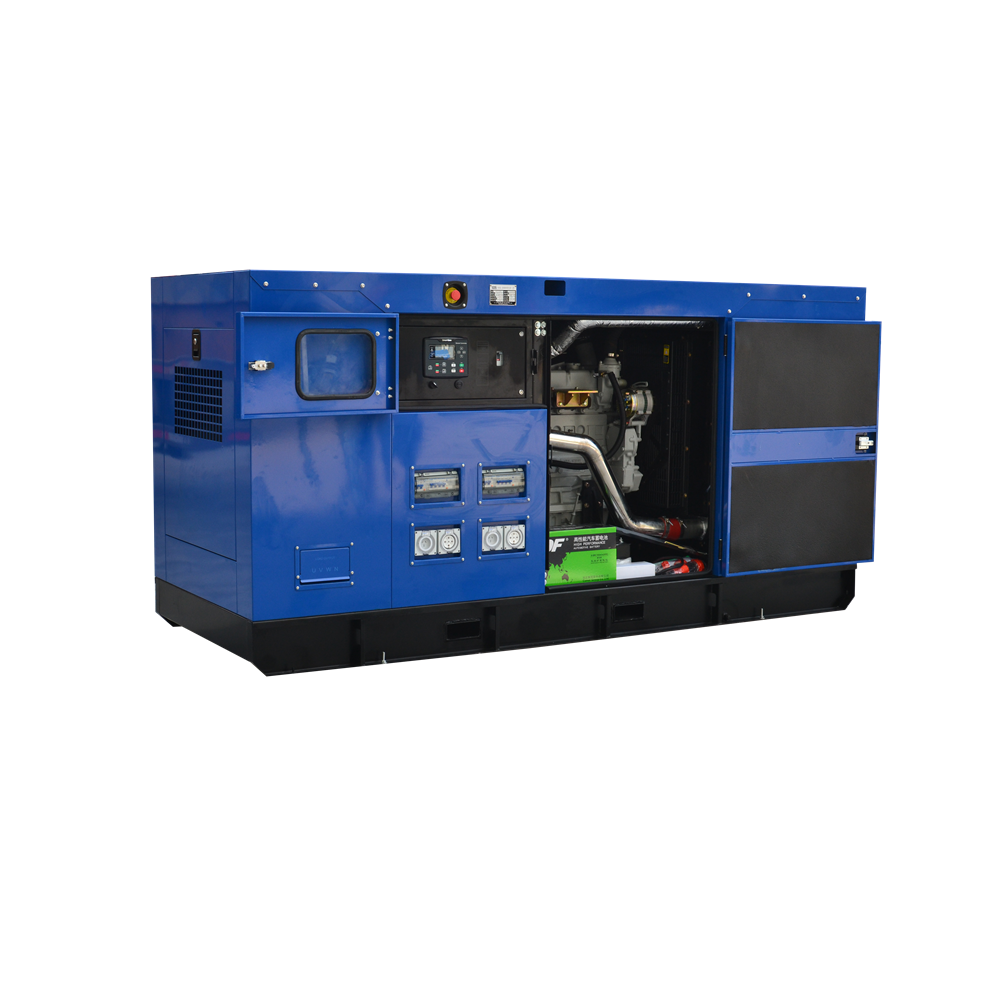

Industrial 64kW YUNNEI YN48ETD77 Water Cooled Diesel Genset CE/ISO 1 Industrial 64kW YUNNEI YN48ETD77 Water Cooled Diesel Genset CE/ISO 2
