High Quality 7kw YANMAR 3TNV76-GGE Silent Diesel Generator

1
MOQ
USD 300-860
τιμή
High Quality 7kw YANMAR 3TNV76-GGE Silent Diesel Generator
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Επισημαίνω:

7kw Yanmar diesel generator

,

silent diesel generator with warranty

,

3TNV76-GGE diesel generator
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: YANMAR
Αριθμό μοντέλου: YANMAR 3TNV76-GGE
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: 175*85*103 εκ
Χρόνος παράδοσης: 30 ΕΡΓΑΣΙΜΕΣ ΗΜΕΡΕΣ
Όροι πληρωμής: L/C, T/T, D/P
Δυνατότητα προσφοράς: 500pcs το μήνα
Περιγραφή προϊόντων
High Quality 7kw YANMAR 3TNV76-GGE Silent Diesel Generator
YANMAR diesel generator set
Our BOBIG 3TNV76-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned BOBIG engine, this 7kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

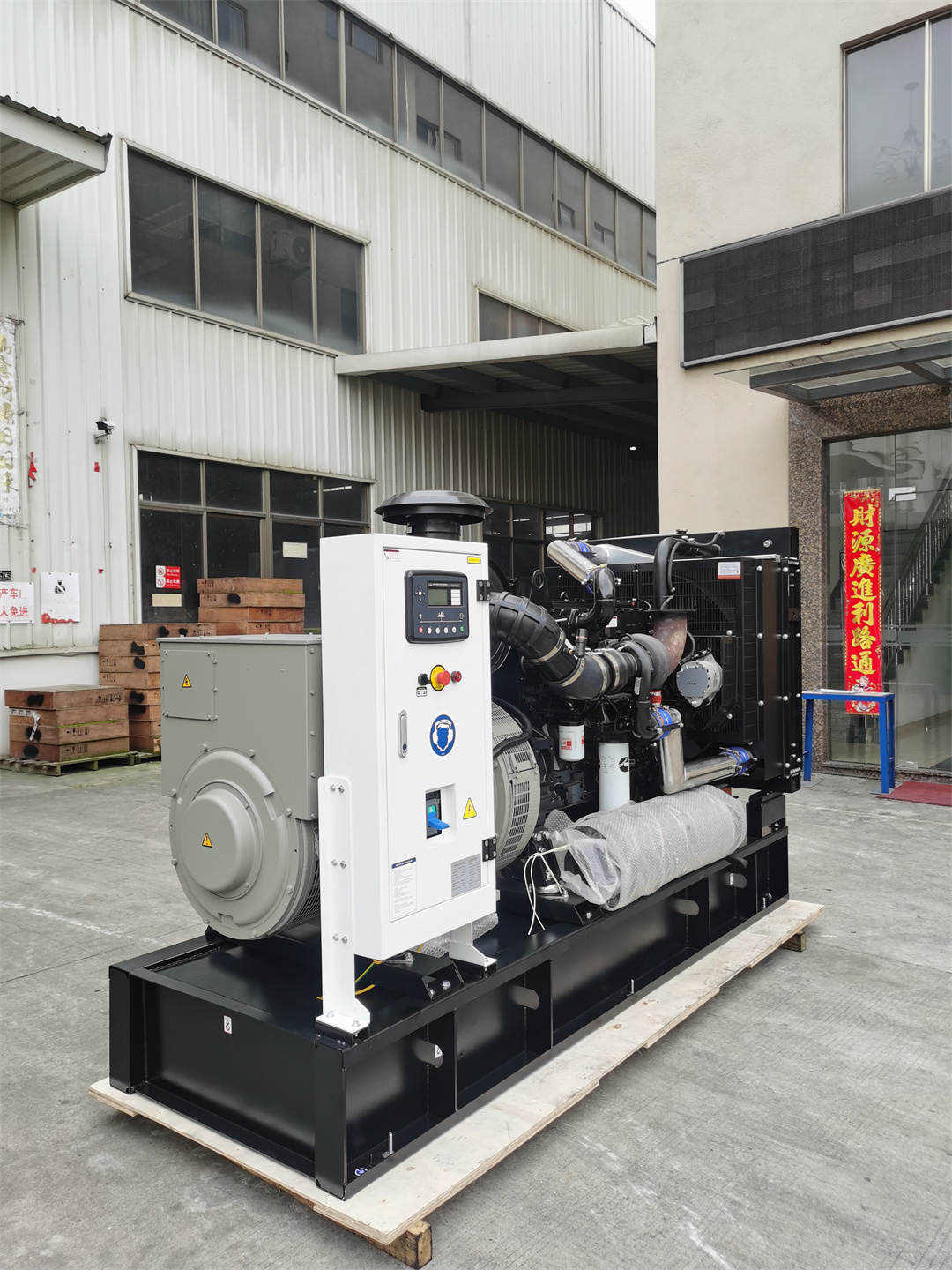

High Quality 7kw YANMAR 3TNV76-GGE Silent Diesel Generator 0High Quality 7kw YANMAR 3TNV76-GGE Silent Diesel Generator 1
General Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)910
Power Rating (kW)78
Frequency (Hz)50
Engine Model3TNV76-GGE
Engine Speed (RPM)1500
Phase3
Power Factor (PF)0.8
Control SystemDigital
Rated Voltage (V)400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
ModelBYN10 (Open Type)BYN10S (Silent Type)
Length (L) mm14001750
Width (W) mm610850
Height (H) mm11301030
Tank Capacity (L)1616
Engine Specifications
Engine Model & Manufacturer3TNV76-GGE (YANMAR)
Engine Type4 cycle, Inline, Water-cooled Diesel
Number of Cylinders - Bore × Stroke (mm)3-φ76×82
Combustion SystemIndirect Injection
Compression Ratio23.5
Displacement (liter)1.116
Rated Output kW(PS)/min⁻¹9.2(12.2)/1500 - 10.7(14.5)/1800
Continuous Rating kW(PS)/min⁻¹8.2(11.1)/1500 - 9.8(13.3)/1800
Specific Fuel Consumption258 g/kW-h (190 g/PS-h) at rated output
Ambient Condition25℃, 750mmHg, 30%
Engine Speed at No Load (min⁻¹)Max: 1900(+25/-25), Min: 1200(+25/-25)
Direction of RotationCounterclockwise (viewed from F.W.)
Engine Dry Weight (kg)Approx. 123
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-164B
Alternator Rated Power7kw/9kva
Rated Voltage (V)230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 Wire
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%

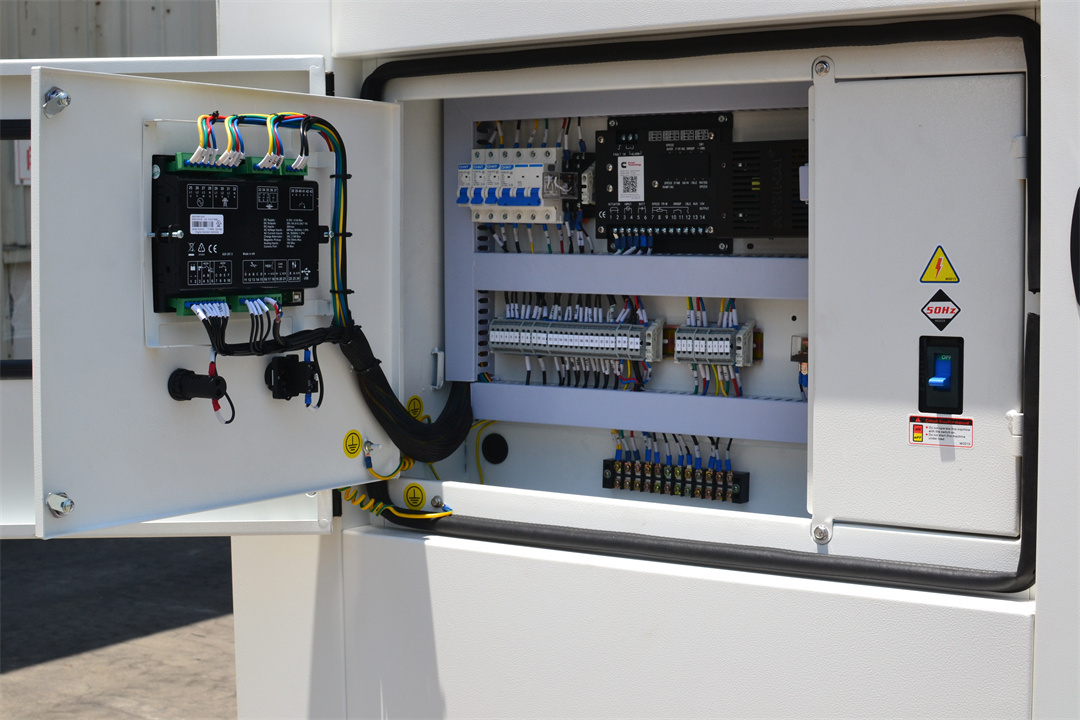

Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & can speed sensing)
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
High Quality 7kw YANMAR 3TNV76-GGE Silent Diesel Generator 2
Available Options
EngineAlternatorFuel SystemGenerating Set
Water Jacket PreheaterPMG excitation12 / 24 hour base tankDeepsea, ComAp, Smartgen etc. controller
Oil PreheaterSpace heaterBunded fuel tankTrailer
Oil manual pumpWinding temperature measuringExternal fuel tankTools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

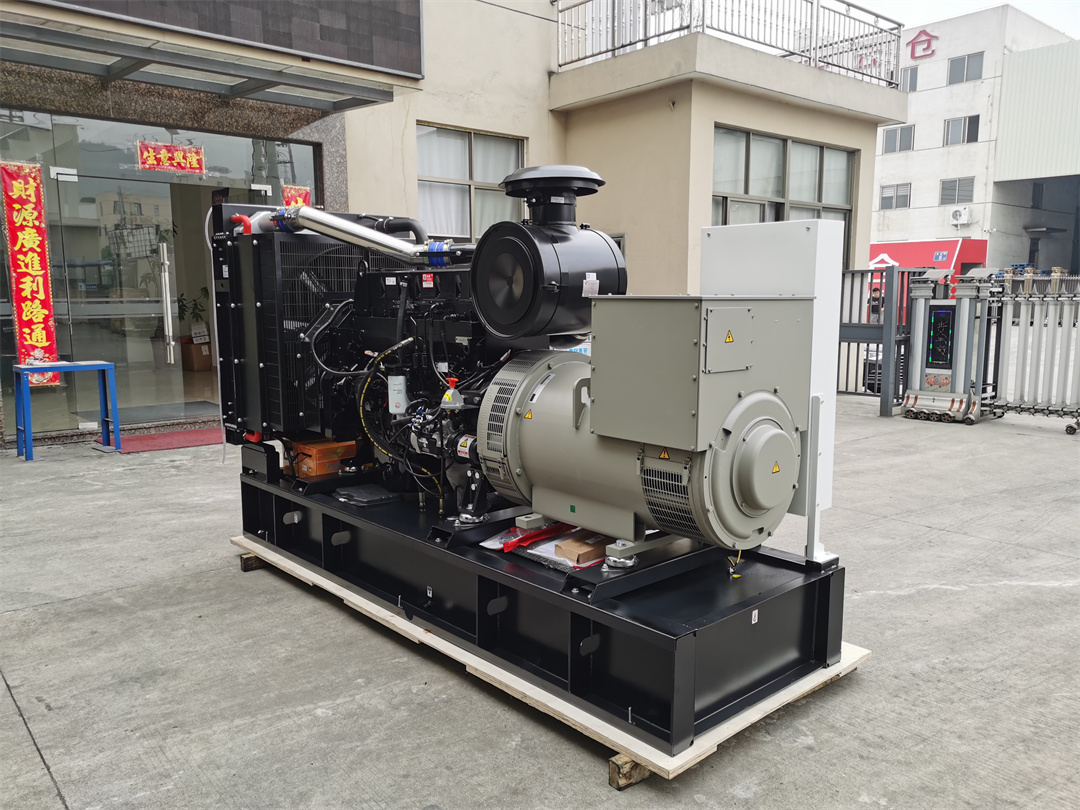

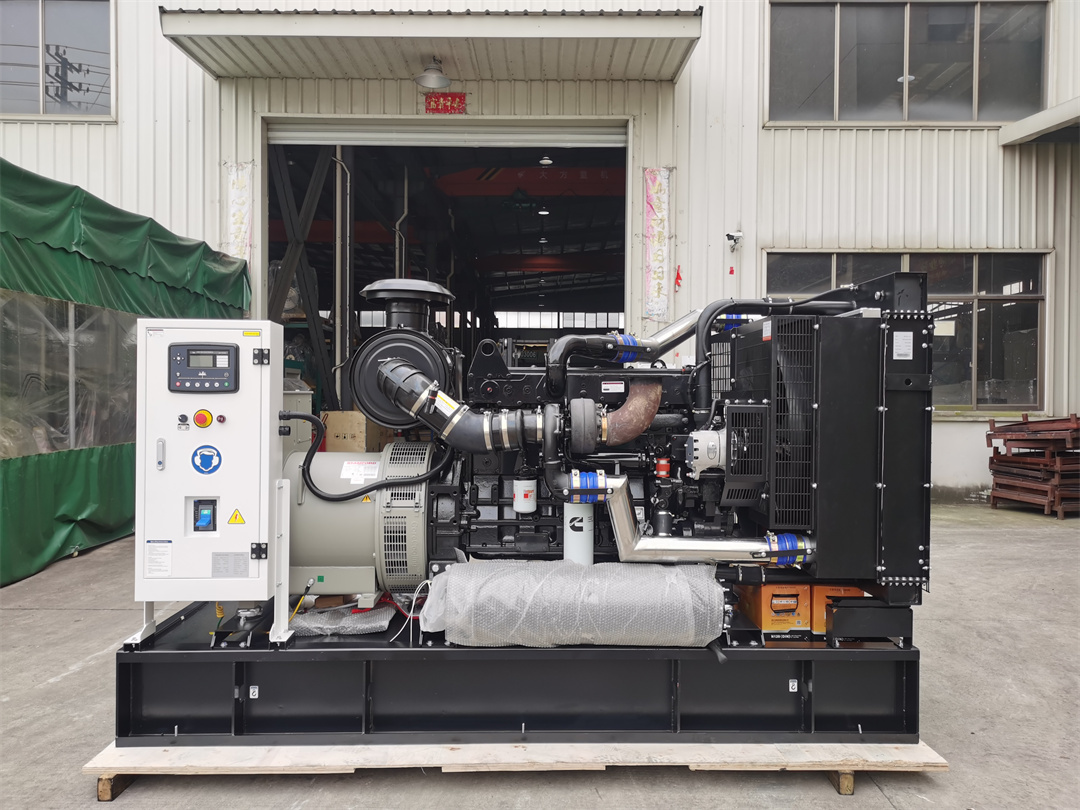

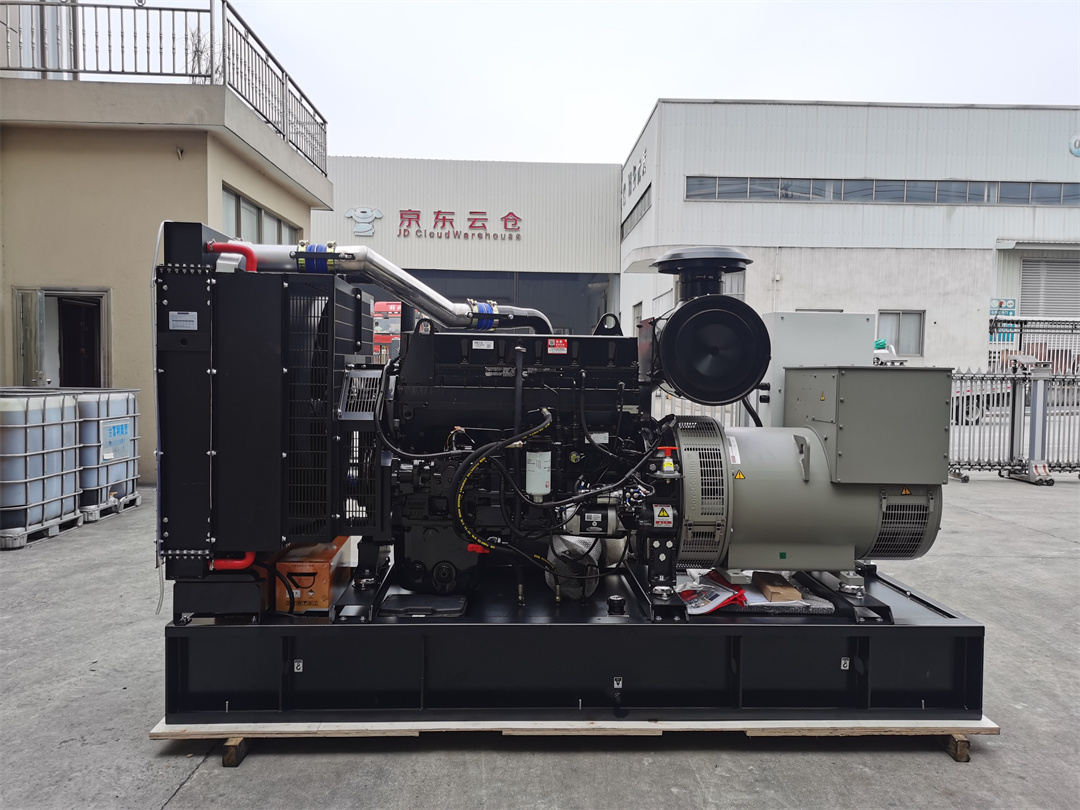

High Quality 7kw YANMAR 3TNV76-GGE Silent Diesel Generator 3High Quality 7kw YANMAR 3TNV76-GGE Silent Diesel Generator 4
